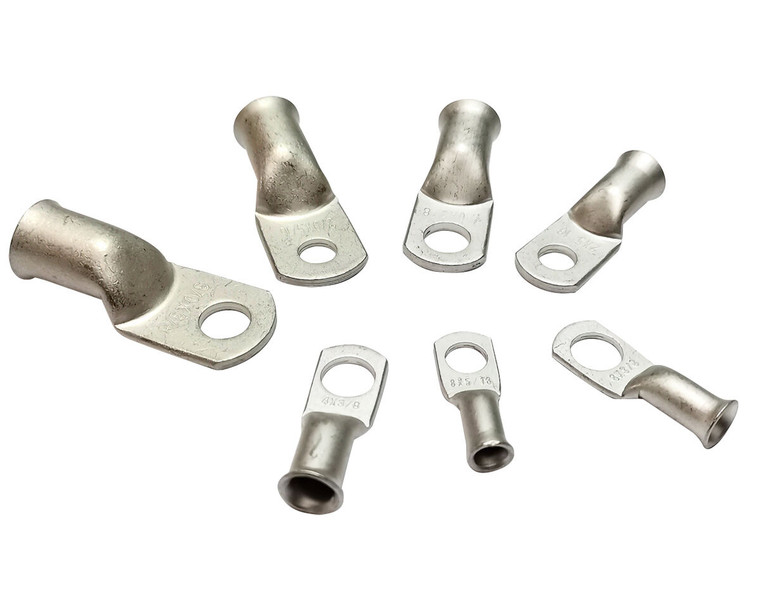

Marine Grade Tinned Copper Lugs
JPW
$9.52 - $23.73
(No reviews yet)
Write a Review
JPW
Marine Grade Tinned Copper Lugs
Marine grade tinned copper lugs manufactured from heavy-duty annealed tinner copper, providing maximum current flow.
Features:
- 100% tin plated copper resists corrosion from salt and moisture,
- Seamless barrel design allows for maximum strength when crimped
- Closed end design seals out moisture so cables stay dry & corrosion free
- Flaring end supplies an easy installation
| JPW SKU | Wire Size | Dimensions (mm) - see images for diagram | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| JPW87750 | 10mm2 (8 B&S) | 6.8 | 7.1 | 4.8 | 11.8 | 13.0 | 33.0 |
| JPW87751 | 10mm2 (8 B&S) | 8.3 | 7.1 | 4.8 | 11.8 | 13.0 | 33.0 |
| JPW87752 | 10mm2 (8 B&S) | 10.4 | 7.1 | 4.8 | 14.5 | 13.0 | 33.0 |
| JPW87753 | 10mm2 (8 B&S) | 13.1 | 7.1 | 4.8 | 17.0 | 13.0 | 33.0 |
| JPW87754 | 16mm2 (6 B&S) | 6.8 | 8.1 | 5.9 | 13.7 | 15.0 | 37.3 |
| JPW87755 | 16mm2 (6 B&S) | 8.3 | 8.1 | 5.9 | 13.7 | 15.0 | 37.3 |
| JPW87756 | 16mm2 (6 B&S) | 10.4 | 8.1 | 5.9 | 13.7 | 15.0 | 37.3 |
| JPW87757 | 25mm2 (4 B&S) | 6.8 | 9.5 | 7.3 | 13.8 | 15.5 | 38.9 |
| JPW87758 | 25mm2 (4 B&S) | 8.3 | 9.5 | 7.3 | 13.8 | 15.5 | 38.9 |
| JPW87759 | 25mm2 (4 B&S) | 10.4 | 9.5 | 7.3 | 14.5 | 15.5 | 38.9 |
| JPW87760 | 35mm2 (2 B&S) | 6.8 | 11.1 | 8.5 | 16.5 | 16.0 | 41.1 |
| JPW87761 | 35mm2 (2 B&S) | 8.3 | 11.1 | 8.5 | 16.5 | 16.0 | 41.1 |
| JPW87762 | 35mm2 (2 B&S) | 10.4 | 11.1 | 8.5 | 16.5 | 16.0 | 41.1 |
| JPW87763 | 35mm2 (2 B&S) | 13.1 | 11.1 | 8.5 | 17.0 | 16.0 | 41.1 |
| JPW87764 | 50mm2 (1 B&S) | 8.3 | 11.7 | 9.1 | 16.4 | 16.0 | 43.6 |
| JPW87765 | 50mm2 (1 B&S) | 10.4 | 11.7 | 9.1 | 17.1 | 16.0 | 43.6 |
| JPW87766 | 50mm2 (1 B&S) | 13.1 | 11.7 | 9.1 | 19.1 | 16.0 | 43.6 |
