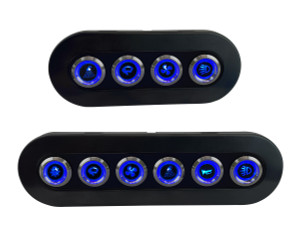

These ABS plastic switch panels feature pre-wired removable blue LED On/Off actuation push button switches. Supplied with o-ring seal and stainless steel face plate to provide a water resistant seal.
The faceplates are made from 316-grade stainless steel and have a brushed finish. The switches are rated at 10A 12-24V standard ON/OFF actuation, with a female non-terminated plug supplied for each switch and fuse holder/s.
These panels can be mounted horizontally or vertically with the 6 screws supplied, and include 100 various icon labels to clearly identify the switch function.
Additional LED switches can be purchased separately and swapped over to create panels with switches with red LEDs or Momentory ON/OFF actuation (see related products).
Features:
- ABS plastic switch panel with stainless steel face plate
- Water resistant with o-ring seal
- ON/OFF switches
- Vertical or horizontal mount
- Silver alloy contacts
- Solid blue indication LED
- Pre-wired ready to fit
- 100 various icon sticky labels
- Includes 6 mounting screws
- Waterproof rating: IP65 (Dust tight and protected from water projected from a nozzle)
- Max current: 20A per 2 branches
- Multivolt: 12-24V
JPW SKU | No. Switches | Fuse Holder | Overall Size (mm) | Cut-out Size (mm) |
---|---|---|---|---|
JPW12915 | 4 gang | 2 x 15A | 130 x 52 | 107 x 27 |
JPW12917 | 6 gang | 3 x 15A | 182 x 52 | 157 x 27 |
