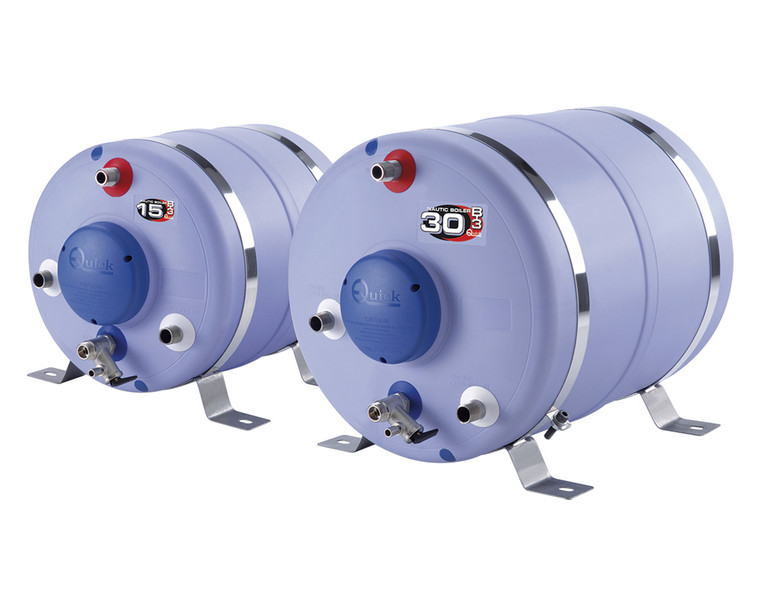

The heat exchanger of the Quick B3 Nautic Boiler is made of 316-grade stainless steel. The tank itself is 1.5mm thick, and welded in a protected atmosphere of Argon gas, making it particularly resistant to corrosive agents.
Thermal insulation is assured by a high-density polyurethane foam with closed cells, providing better and longer-lasting thermal retention.
The heat exchanger has a capacity that is notably higher than that achieved from other manufacturers.
The heating element is made of Incoloy®, a nickel-based superalloy that has ,excellent corrison-resistance and withstands high temperatures.
The thermal insulation is high-density polyurethane foam injected between the cover and tank to give excellent heat-retention properties.
The 15L, 20L and 25L waterheaters are avaialble with either 500W or 1300W heating element, the other larger capacities are supplied with a 1300W heating element.
Water heating time (example) for Quick B3 Hot Water Heater 40L 1300W: 15 mins to take the chill off, 30 mins to get warm and 45 mins for hot water. These times will vary depending on size of the tank and wattage of heating element.
Features:
- High-quality materials ensure the product is both reliable and long-lasting
- Heat exchanger with a large exchanging surface
- Producing hot water also by means of an electric element, which is provided with an adjustable and safety thermostat

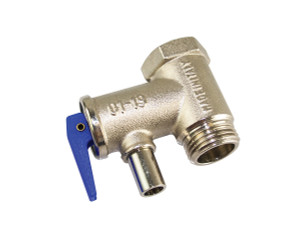

- Relief/non-return valve protects the tank against overpressure and drains off water from the boiler when no longer used
- Australian compliant pressure/temperature relief valve and thermostatic mixing valve.
- Installation is easy and practical on a flat area
Tank Material | Stainless Steel |
---|---|
Thermal Insulator | Polyurethane Foam |
External Cladding Material | Composite |
Tank Pressure (Running Test) | 800kPa* |
Maximum Working Pressure | 600kPa* |
Electric Element Voltage Rating | 220 Vac ± 10% |
Electric Element Power | 500W or 1300W |
Output Diameter | 1/2" |
*1 Bar = 100 kPa
Capacity (L) | Dimensions (mm) (Dia x L) |
Weight (kg) |
Heating Element (W) |
---|---|---|---|
15 | 300 x 405 | 7.0 | 500 or 1300 |
20 | 300 x 500 | 8.1 | 500 or 1300 |
25 | 300 x 605 | 8.5 | 500 or 1300 |
30 | 360 x 495 | 10.5 | 1300 |
40 | 360 x 620 | 11.7 | 1300 |
60 | 400 x 721 | 14.6 | 1300 |
80 | 400 x 921 | 17.8 | 1300 |
