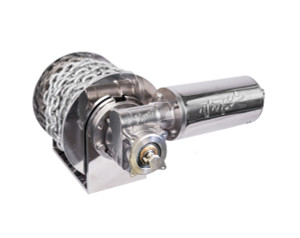

Viper S Series Gravity Feed Anchor Winch

If you are anchoring in deep water and/or require high performance anchoring, the Gravity Feed winch is the one for you.

Its quiet and efficient operation also conserves your battery and runs at up to four times faster than some drum winches using our mechanical patented design.

Suit vessel length: 5.7m +

It has now proven itself to be a serious contender in the high performance anchoring arena. The all-stainless steel Gravity Feed was designed without any additional electronics, wiring or solenoids that can be the downfall in harsh boating environments.

The drop speed will ensure your anchor hits the bottom exactly where you want it, when you want it.

At the touch of a switch, the Viper Gravity Feed winch controls the drop speed to ensure no over-spooling (can be set to match the size of your anchor), while giving you ultimate speed.

If you are anchoring in deep water and/or require high performance anchoring, the Gravity Feed winch is the one for you – its quiet and efficient operation also conserves your battery and runs at up to four times faster than some drum winches using our mechanical patented design.

Please note: 1m of 3B&S cables is already attached to the motor and leak tested, so there is no need to remove end caps that are not sealed properly!

Features:

• 1000W submersible stainless steel electric motor
• 28mm solid stainless steel shaft with 3 support bearings
• 8mm marine grade 316-grade stainless steel plate, hand polished to a mirror finish
• 316-grade stainless steel marine worm drive gear box
• 360 Degree motor rotation with 16 different positions
• Max fall rate: 138m per minute
• Max retrieval rate: 45m per minute
• Suit vessel length: 5.7m +
• Weight: 23 kgs (winch only)
• Well clearance required: 435mm (W) x 365mm (D) x 266mm (H)
• Motor water protection rating: IP68
• 5 year warranty

Kit Bundle includes:

• 1x Viper S Series Gravity Feed 1000 electric drum anchor winch
• Choice of rope kits:
  • 90m x 6mm Double Braid Premium
  • 165m x 5mm 12 Plait Uhmwpe Hi Spec 3000 rope
    • Hi-Spec rope kit also includes: 10m x 8mm 3 Strand Polyester shock cord spiced at both ends
• 8m x 6mm Galvanised short link anchor chain
• 316-grade stainless steel worm drive marine gearbox
• Viper Pro Series anchor swivel - small
• Viper deluxe anchor roller - small
• 200 Amp reversing solenoid
• Elite Series 2 gang ON/OFF stainless steel switch panel
• 100 Amp flush-mount circuit breaker with rubber seal
• All necessary installation hardware
