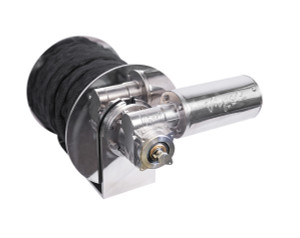

The Viper Pro Series II 1500 anchor winch is the most powerful in the Viper Pro range, designed for larger vessel installations of 8 meters and over and powerful enough to haul up a 37lb plus anchor all day.
Suit vessel length: 8m +
This anchor winch has a fall rate of 50m per minute and has more torque than a conventional drum winch; three support bearings hugging a one-piece 32mm solid stainless steel shaft and 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards.
Constructed from 8mm plate 316 marine grade stainless steel (hand polished to a mirror finish) and comes standard with a LIFETIME warranty against water intrusion, and a bullet proof 5 YEAR Viper performance warranty.
If you take your boating seriously and have an application that requires reliability and unsurpassed performance, then you can’t go past the Viper Pro Series II 1500!
Please note: 1m of 3B&S cables is already attached to the motor and leak tested, so there is no need to remove end caps that are not sealed properly!
Features:
- Max fall rate: 50m per minute
- Max retrieval rate: 46m per minute
- Suit vessel length: 8m +
- Max load: 360kgs
- Weight: 28kgs
- 5 year warranty
Kit Bundle includes:
- 1x Viper Pro Series II 1500 Anchor Winch
- Choice of rope kits:
- 10m x 8mm Galvanised short link anchor chain
- 1m 3B&S power leads and connectors
- Viper Pro Series anchor swivel - large
- Viper deluxe anchor roller - large
- 400 Amp reversing solenoid
- LED illuminated marine rocker switch
- Laser-inscribed LED illuminated switch cover
- 135 Amp flush-mount circuit breaker with rubber seal
- 5mm stainless steel sandwich plate
- All necessary fixing hardware
SKU | Rope | Shock Cord | Chain | Breaking Strain |
---|---|---|---|---|
JPW12862 | 200m x 6mm (Double Braid Premium) | - none - | 10m x 8mm (Galvanised Short Link) | 1,000 kg |
JPW12863 | 100m x 8mm (3 Strand Nylon Premium) | - none - | 10m x 8mm (Galvanised Short Link) | 1,000 kg |
