Vertical Capstan - Totem Series
Sale

Vertical Capstan - Totem Series

Quick
SKU:
QFSTM30600120B00
$2,299.37 $2,194.86
$2,299.37
(You save $104.51 )
(No reviews yet)
Current Stock:
Description

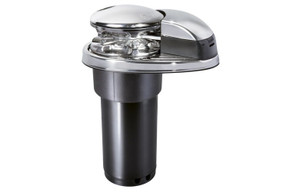

The Quick Totem TM3 is a rope only drum capstan that has a vertical watertight motor for easy and fast drop-in installation, perfect for boats with limited deck space.

Equipped with an epicyclical gearbox that provides much higher efficiency, the Totem series is also suitable for general line hauling applications on larger boats.



A rope only anchor winch that allows for easy installation.

Also suitable for general line hauling applications on larger boats.

Features:

  • Mounts easily in any deck thickness (stud dependent)
  • Suitable for vertical or horizontal mounting
  • Patented epicyclical gearbox allows higher performance of the motor
  • Permanent magnet motor for greater output and reduced power consumption
  • IP66 watertight motor
  • AISI 316 grade stainless steel base
  • 3 year warranty from the date of sale

Standard Inclusions:

  • Clutch Release and Manual Life Handle
  • Isolator/Circuit Breaker Panel
  • Reversing Solenoid
  • Deck thickness: 20 - 30mm

Optional Additions:

  • Remote Up/Down Panel Switch
Model TM3 600 TM3 1000
Watts 500w 800w
Volts 12v 12v or 24v
Amps 40amps 80/40Amps
Maximum Pull 620kg 820kg
Maximum Working Load 200kg 290kg
Maximum Chain Speed 15.4m/min 25.8m/min
Drive Shaft Vertical Vertical
Capstan Option Yes Yes
Chain/Rope Gypsy No No
