Ultraflex UP20T Hydraulic Steering Tilt Mount Helm Pump

Ultraflex UP20T Hydraulic Steering Tilt Mount Helm Pump

Ultraflex
SKU:
JPW18906
$1,293.12
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description

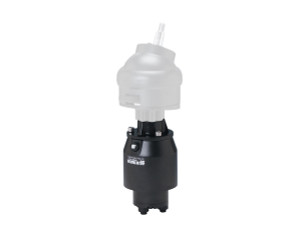

Ultraflex front mount helm pump only, suited for hydraulic steering systems up to 175hp.

*Must be purchased with Tilt mechanism X52 (U39250) - see related products.

Features:

  • Built-in lock valve for positive rudder lock
  • Integral relief valve for over-pressure protection
  • 3/4” tapered stainless steel shaft
  • Corrosion proof composite housing
  • Easy accessible lock valve and shaft seal for replacement
  • Includes 90° adjustable fittings for 3/8” tube
  • For use with UC95-OBF, UC68-OBS and UC69-I cylinders only
  • Tilt mechanism X52 (U39250) provides tilt range of 48º and five locking positions

Specifications:

  • Displacement / Revolution: 20cc - 1.2 cu.in
  • No. of Pistons: 5
  • Relief valve setting: 70 bar (1000 psi)
  • Maximum wheel diameter: 508mm (20")
  • Weight: 3.6kg (8 lbs)
