Description

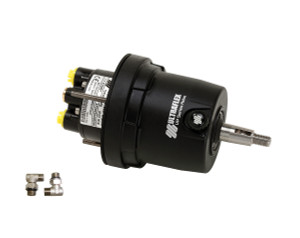

Ultraflex front mount helm pump only, suited for hydraulic steering systems up to 175hp.

Features:

  • Built-in lock valve for positive rudder lock
  • Integral relief valve for over-pressure protection
  • 3/4” tapered stainless steel shaft
  • Corrosion proof composite housing
  • Easy accessible lock valve and shaft seal for replacement
  • Includes 90° adjustable fittings for 3/8” tube
  • For use with UC95-OBF, UC68-OBS and UC69-I cylinders only
  • X74 (U43048) square flange permits to install the UP20F pump in an intermediate dashboard position

Specifications:

  • Displacement / Revolution: 20cc - 1.2 cu.in
  • No. of Pistons: 5
  • Relief valve setting: 70 bar (1000 psi)
  • Maximum wheel diameter: 508mm (20")
  • Weight: 3.6kg (8 lbs)


Available within kits (see related products):

  • Ultraflex HYCO-1 150HP Inboard Hydraulic Steering Kit
  • Ultraflex HYCO-OBS 150HP Side Mount Hydraulic Steering Kit
  • Ultraflex HyTech 175hp Hydraulic Steering Kit

*Steering kits come packaged with a helm pump, inboard/outboard cylinder, two litres of hydraulic oil. The HYCO-1 steering system also includes a hydraulic hose kit.
