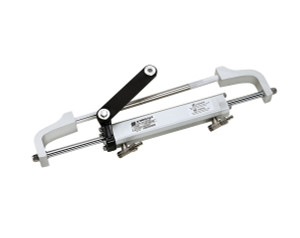

Ultraflex UC95-OBF Hydraulic Cylinder Front Mount 175HP

Ultraflex UC95-OBF Hydraulic Cylinder Front Mount 175HP

Ultraflex
$1,092.59 - $1,203.58
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

The UC95-OBF front mount cylinder is recommended for use with outboard engines 175 hp total and where the boat speed does not exceed 55 mph  (48 knots)

Not intended for use in racing applications.

See engine application guide below to match cylinder options (these recommendations should be used as a general reference only).

Features:

  • For outboard engines applications up to 175HP
  • UC95-OBF/1 – OBF/2 – OBF/3
  • Balanced: the number of wheel turns lock-to-lock is equal port to starboard or vice-versa
  • Adjustable boss style fittings for easy installation
  • High resistance stainless steel connection bolt (ULTRABOLT)
  • Replaceable cylinder end caps
  • Patented innovative design: Split and pinned cylinder mounting rod for easy installation and bushings to prevent friction with engine tilt tube
  • 3/8” or 9.5mm fittings for high pressure flex hose
  • DN5 quick connect bleed fittings

UC95-OBF Cylinder Specifications:

  • Volume: 94 cc - 5.7 cu. in
  • Output force: 278kg (613 lbs)
  • Internal diameter: 30mm (1.18")
  • Stroke: 186 mm (7.3”)
  • 3/8” (9.5mm) Fittings for high pressure flex hose
  • Bleed fittings: DN5 Quick connect



Engine Application Guide

Note: These recommendations should be used as a general reference only.

JPW SKU Kit Cylinder
JPW18939-1   1   UC95-OBF/1
JPW18939-2   2   UC95-OBF/2
JPW18939-3   3   UC95-OBF/3

Note: The   2   UC95-OBF/2 cylinder allows for a wider tilting angle

Engine Power Year Kit
Mercury®
Mariner®		 80-75-90 2S
50-75-90 2S
75-90-115 Optimax 2 Stroke
125- 135-150 -175 Optimax 2 Stroke
100-115-150 EFI 2S
40-50-60 EFI 4S
75-80-90 EFI 4S
100-115-EFI 4 Stroke
175-V6 FOURSTROKE		 1990-2008
1990-2008
2004-to date
1999-to date
1999-to date
2004-to date
2000-to date
2007-to date
2018-to date		   1
  1
  3
  1
  1
  1
  1
  1
  1
Evinrude® E40-E50-E55-E60 2S
E75-E90 2 Stroke
E115-E130 -E135 2 Stroke V4
E130-E135 2 Stroke V4
E150 -175 2 Stroke V6		 2004-to date
2004-to date
1995-to date
1995-to date
1995-to date		   1    or    2
  1    or    2
  1    or    2
  1    or    2
  1    or    2
Yamaha® 60-70 2S
75C-90 2 Stroke
115C-130B -150F 2 Stroke
150-175 HPDI VMAX 2 Stroke
F60-F75-F80 EFI 4S
F90-F100-F115 F150 EFI 4 Stroke
F115-F150-F175 L4 4S		 1984-2008
1998-2008
1990-2008
2000-2008
1999-2007
1999-2007
2004-to date		   1
  1    or    2
  1    or    2
  1    or    2
  1
  1
  1
Honda® BF75-90 4 Stroke
BF80-100
BF115D
BF115A
BF130A
BF135-150 4 Stroke
BF175-4 Stroke		 1995-to date
2013-to date
1998-2009
2009-to date
1998-2005
2005-to date
2001-to date		   1
  1
  3
  1
  3
  1
  1
Suzuki® DF70-80-90 4 Stroke
DF100-115 -140 4 Stroke
DF150-175 4 Stroke		 1998-to date
1998-to date
2006-to date		   1    or    2
  1
  1
Tohatsu®
Nissan®		 115-120-140 2 Stroke
70-90-115 TLDI 4 Stroke
BFT60-75-90 4S
BFT80-100-115-150 4S
70-90-115 TLDI 4 Stroke
70-90-100-115 MFS 4 Stroke		 2004-to date
2004-to date
2015-to date
2015-to date
2004-to date
2020-to date		   1    or    2
  1
  1
  1
  1
  1
Selve® 80 Portofino/Tigershark 2 Stroke
150 WHITE SHARK 2S
100EFI Marlin - 115 EFI Narwhal
150EFI Killer Whale 4 Stroke		 1995-to date
2001-2007
2001-2007
2000-to date		   1
  1    or    2
  1
  1
Johnson® BJ90-115-140 4 Stroke
BJ70 4 Stroke
J90-115 V4 2 Stroke
J150 -175 V6 2 Stroke		 2001-2007
2001-2007
1995-2007
1995-2007		   1
  1    or    2
  1    or    2
  1    or    2
