Ultraflex B501 Series Top Mount Single Engine Controls
Sale

Ultraflex B501 Series Top Mount Single Engine Controls

Ultraflex
MSRP: $1,153.13 - $1,344.99
$1,100.72 - $1,283.86
(No reviews yet)
Current Stock:
Description

With a focus on efficiency, these Single-Engine Controls have been specifically designed to improve the functionality of control systems, making the boat easier to control.

Single lever / dual action control to operate both throttle and shift. Suitable for any type of boat with outboard or inboard engines.

Available with or without lock-in neutral, and with or without trim switches.

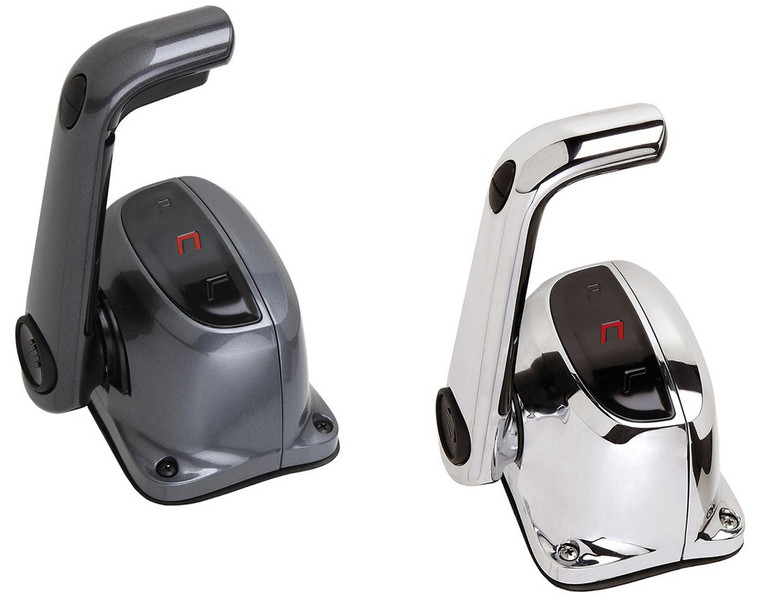

Two finishes available:

  • Chrome Plated Finish: High resistance ABS housing with die-cast chrome-plated levers
  • Gunmetal Finish: High resistance ABS housing with die-cast black painted levers

Twin controls also available (see related products).

Features:

  • Enables easy and safe shifting by preventing accidental gear engagement unless the engine is idling
  • Push in button disengages shift for warm-up
  • X12 - 34543Q (optional) neutral safety switch which prevents in-gear starting
  • Exceeds EN ISO 11547 standards when X12 safety switch is installed

For use with all Ultraflex control cables except C4:

  • C14 and MACH 14 cables require no kit
  • For C2, C8 and MACH Zero cables the connection kit K59 (40144C) is included
  • C5, C16 and MACH 5 cables require K60 Kit (U40145)
  • C36 and MACH 36 cables require K62 Kit (U40147)
Lever Single Lever
Lever Control Dual action lever
Assembly Top Mount
Application Outboards, Sterndrives, Inboard
Housing Material High resistance ABS
Lever Material Die cast levers
Colours Chrome plated or gun metal
Version Full mechanical
Adjustable Friction Provided
Engine Warm up Button Provided
X12 Neutral Safety Switch Optional
EN ISO 11547 Yes, when X12 safety switch is installed
Control Cables C14, MACH14
Control Cables that require connection kit C2, C8, MachZero: K59 included
C5, C16, Mach5: K60
C36, Mach36: K62
C22: K61
