U Bolt 316 Grade Stainless Steel with Plate
JPW
$44.18 - $63.04
(No reviews yet)
Write a Review
JPW

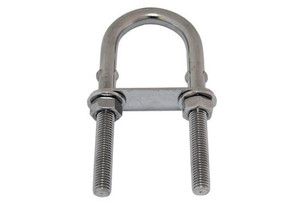

U Bolt 316 Grade Stainless Steel with Plate
These U-bolt Bow Eyes can be used as a secure point on your boat’s bow or tie-down secure points for the stern. Made from 316 grade stainless steel the “U” bolts have a tapered shaft with a welded bearing plate for added strength..
Supplied with 2 x cross plates and 2 hex nuts.
| JPW SKU | Dimensions - see diagram within images (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| A (Thread) | B | C | D | E | F | G | H | |
| JPW4845 | 9.5mm (3/8") 16 UNC | 114 | 45 | 25.5 | 66.5 | 76 | 25.5 | 9.5 |
| JPW4846 | 12.5mm (1/2") 13 UNC | 110 | 58 | 30 | 54 | 64 | 32 | 12.5 |
| JPW4847 | 12.5mm (1/2") 13 UNC | 135 | 58 | 30 | 80 | 90 | 32 | 12.5 |
| JPW4848 | 12.5mm (1/2") 13 UNC | 160 | 58 | 32 | 105 | 115 | 32 | 12.5 |
