Shurflo Bilge Pumps 380 - 700 GPH
SHURflo
$57.65 - $92.73
(No reviews yet)
Write a Review
SHURflo

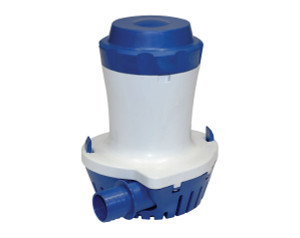

Shurflo Bilge Pumps 380 - 700 GPH
Manufactured to withstand tough marine conditions, these bilge pumps feature 900mm (3ft) tinned power leads to protect the wires from corrosion and enable operation in the wettest environments.
To insure long life, the anti-airlock motor can be installed below the waterline as it is submersible and water cooled. The motor also operates under the same condition for a long duration of time.
The housing is constructed from ABS plastic, the impeller is made of high strength nylon, and the shaft is stainless steel.
Installation is made easy with a quick-disconnect base plate and all stainless steel hardware supplied.
Available with 3 different flow rates (380GPH, 500GPH or 700GPH), the Shurflo 355 series are quality bilge pumps you can trust.
Please note: these pumps must not be run dry. Running these pumps dry can ruin the seals within the unit, which will eventually allow water into the motor housing, and in doing so will ruin the motor.
Features:
- Withstands the harsh marine environments
- Continuous duty and anti-airlock
- 12V permanent magnet motor
- Requires external fuse
- Submersible and water cooled motor
- Quick-disconnect base plate
- ABS housing with high strength nylon impeller
- 900mm (3ft) tinned power leads
- 3/4" barb port outlet
- Do not run dry
- Approvals: Ignition protected (ISO 8849), CE, IMCI Certified
- Float switches sold separately (see related products)
For more specifications, download the manual or data sheets found under the "Downloads" tab.
| JPW SKU | Flow Rate (Gallons per Hour) |
Flow Rate (Litres per Minute) |
Amps | Fuse |
|---|---|---|---|---|
| JPW3521 | 380 GPH | 24 LPM | 1.7A | 2.5A |
| JPW3522 | 500 GPH | 32 LPM | 1.8A | 2.5A |
| JPW3523 | 700 GPH | 44 LPM | 3.2A | 5A |
