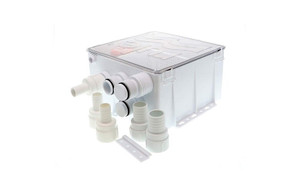

Rule 1100GPH Shower Sump Drain Kit

Rule 1100GPH Shower Sump Drain Kit

Rule
$383.00 - $423.01
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description



This compact, full-capacity shower drain system automatically turns on after the water starts and shuts off when the water is removed. Contains a Rule 1100GPH submersible bilge pump and a Rule-a-Matic Float Switch.

With threaded inlet and discharge ports, along with snap-in components, the shower drain box is easy to install.

This system features a removable filter for cleaning, a sealed polycarbonate clip-on lid, and is fully-serviceable without the need for tools.

Product features:

  • Removable filter allows easy cleaning
  • Sealed polycarbonate clip-on lid
  • Integral non-return valve
  • Ignition protected
  • Multi-port inlet
  • 1 x 28mm (1 1/8") discharge port (or use one of the other screw-on sizes)
  • 1 x 38mm (1 1/2") fixed hose port
  • 4 x screw-on inlet port options (two come blanked off)
    • 2 x 20mm
    • 1 x 25mm
    • 1 x 28mm
Flow Rate 1,100 GPH (4,164 LPM)
Amperage

12v: 3.7 amp @ 12v / 4.5 amp @ 13.6v

24v: 1.8 amp @ 24v / 2.2 amp @ 27v
Height 130mm
Width 240mm
Length 230mm (plus 75mm for inlet ports and screw-on fittings)
Warranty 2 years
