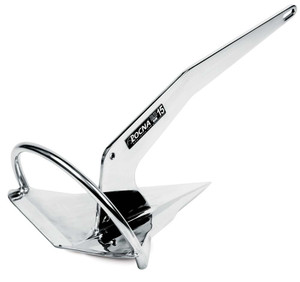

ROCNA Mk II: Perfecting the ideal / The inheritance of excellence / Pushing out the boundaries.
The latest Rocna Mk II anchor is the first major improvement since the launch of the highly successful and acclaimed Rocna Original. After years of careful testing and refinement, and exploiting innovations also found in the well-received Vulcan® anchor, the designer (New Zealand sailor Peter Smith) has honed the ultimate Rocna anchor: the Mk II.
An idealized form of the Rocna design, the Rocna Mk II is based on the same proven design pattern, but refines every element close to perfection.
The Rocna Mk II brings substantial upgrades in performance and strength by way of revision and refinement – inheriting and uprating the original’s proven performance advantages for an extremely quick and reliable set across a range of seabeds, with rock solid holding power.
Features:
- SHANK: Working with high tensile steel, the Rocna Mk II shank is further strengthened by Rocna’s patented I+V profile™ design. This computer optimized I-beam geometry brings higher resistance to bending, and further improves setting performance as the lower V-edge cuts into the seabed. This helps the anchor penetrate more easily to a deep and secure burial.
- ROLL-FOIL: The Rocna roll-bar has been sculpted into the patented roll-foil™ providing even surer self-righting for the most reliable set. The roll-foil’s sections vary in profile, each designed for its own dynamic role: to provide extra assistance if the anchor lands upside-down, to help during setting for deeper penetration and greater holding once buried, and to improve soil flow for reduced clogging.
- FLUKE: The Rocna fluke has been optimized for weight distribution, penetration, and strength. It enjoys a new weighted and reinforced tip. Steel moved from where it is extraneous, to where it aids. The tried and true Rocna fluke is increased in surface area, for a substantial boost in holding power. And all attained with no trade-offs.
CHOOSE THE ROCNA Mk II: For ultimate performance and maximized safety, the Rocna Mk II is the world’s premier anchoring investment. Designed and built without compromise, it’s rock solid.
Sugg. Boat Size (m) | Anchor Size | Dimensions (mm) - see diagram within images | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | S | R | Width | |||
4-7 | 9lb | 4kg | 529 | 365 | 152 | 132 | 99 | 93 | 66 | 132 | 271 |
5 - 9 | 13lb | 6kg | 606 | 418 | 174 | 151 | 114 | 107 | 75 | 151 | 310 |
6-11 | 20lb | 9kg | 694 | 479 | 199 | 172 | 130 | 122 | 86 | 173 | 355 |
7-12 | 27lb | 12kg | 763 | 527 | 219 | 190 | 143 | 135 | 95 | 193 | 390 |
8-14 | 33lb | 15kg | 822 | 568 | 236 | 204 | 154 | 145 | 102 | 205 | 421 |
9-16 | 44lb | 20kg | 905 | 625 | 260 | 225 | 170 | 160 | 112 | 226 | 463 |
10-18 | 55lb | 25kg | 975 | 673 | 280 | 242 | 183 | 172 | 121 | 243 | 499 |
12-22 | 73lb | 33kg | 1069 | 738 | 307 | 266 | 200 | 189 | 133 | 267 | 547 |
14-24 | 88lb | 40kg | 1140 | 787 | 328 | 284 | 214 | 201 | 141 | 284 | 583 |
16-26 | 110lb | 50kg | 1228 | 848 | 353 | 305 | 230 | 217 | 152 | 306 | 628 |
