Description

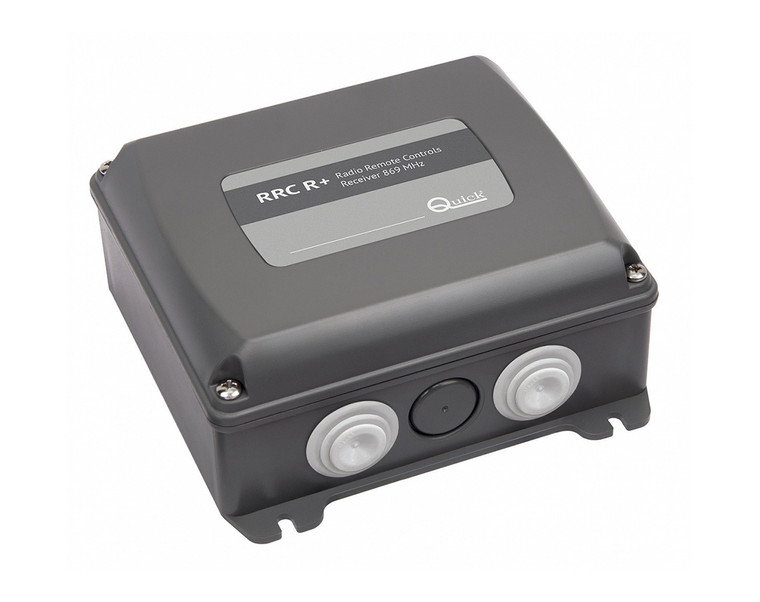

The RRC radio control receiver, when paired with an RRC radio transmitter, is designed for controlling devices or accessories such as anchor winches and bow/stern thrusters.

Features seven-segement display and LED indication of the system operating status, errors and problems.

Can be programmed to receive signals from multiple transmitters allowing for multiple applications per unit.

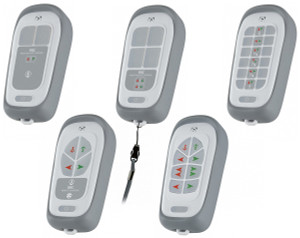

These latest models come with a higher frequency (869.8 mhz) and will only operate with Quick radio transmitters with the same frequency (sold separately - see related products).

Features:

  • Full supply range: 10.5 - 31VDC
  • Microcontroller-operated functions
  • FSK modulation and carrier freqency 869.8 Mhz
  • Operating temperature: -15°C to +70°C
  • LED indication & 7-segment display
  • Protection against polarity inversion
  • Protection against the discharge of the battery
  • 50 transmitters can be stored
  • Translation mode to activate more receivers, installed in different spots, by means of one transmitter
  • Programmable digital filter
  • Two functions can be activated at the same time
  • Possible connection to an external antenna
  • Dimensions: 143 x 142 x 62mm
  • Must be installed vertically (mounting hardware not included)



SKU Model Channels
QFRRRCR02P000A00 RRC R02 2
QFRRRCR04P000A00 RRC R04 4
QFRRRCR06P000A00 RRC R06 6
QFRRRCR08P000A00 RRC R08 8
QFRRRCR10P000A00 RRC R10 10
QFRRRCR12P000A00 RRC R12 12
