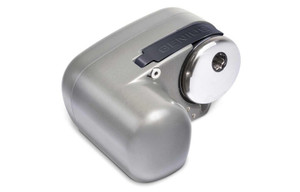

Quick GP2 2000 Series Horizonal Windlass

Quick GP2 2000 Series Horizonal Windlass

Quick
SKU:
QFSGP22012008A06
$3,160.80
(No reviews yet)
Current Stock:
Description

Oversize Product

A compact, on-deck mounted windlass providing functionality and efficiency. Manufactured for the harsh marine environment, the Genius GP2 2000 features a robust anodised marine grade alloy housing and a 316 grade stainless steel gypsy.
Recommended Boat Size: 8 - 13mtr (26-43ft)

Manufactured for the harsh marine environment, the Genius GP2 2000 features a robust anodised marine grade alloy housing and a 316 grade stainless steel gypsy.

The Genius GP2 2000FF free-fall version allows fast, precision anchoring.

Quick's patented free fall mechanism will send the anchor into free fall from the touch of a button, when hitting that ledge or wreck, really matters. The serious fisherman's friend!

Features:

  • GP2 2000: Power Up / Power Down operation
  • GP2 2000FF: Quick's Free-Fall technology
  • Ideal for restricted above deck mounting
  • Anodised alloy housing for reduced corrosion
  • Dual direction permanent magnet motor for greater output and reduced power consumption
  • 3 year warranty from the date of sale

Standard Inclusions:

  • Composite Clutch Manual Release Handle
  • Isolator/Circuit Breaker Panel
  • Reversing Solenoid
  • Gypsy: to suit 6-8mm short link chain, 12mm three-strand nylon or polyester rope

Optional Additions:

  • Foot Switches: Up-Down for the deck
  • Digital Chain Counters
  • Hand Held Remote Controls
  • Remote Up/Down Panel Switch
Model GP2 2000 GP2 2000 FF
Watts 800 watts 800 watts
Volts Std. (Opt.) 12 (24) volts 12 (24) volts
Amps 96 amps 96 amps
Chain Standard (Opt.) 8 (6) mm 8 (6) mm
Rope Size 12mm 12mm
Maximum Pull 900kg 900kg
Maximum Working Load 350kg 350kg
Maximum Chain Speed 29.6m/min 29.6m/min
Drive Shaft Horizontal Horizontal
Capstan Option No No
Chain/Rope Gypsy Yes Yes
Dimensions (mm)
(L x W x H)		 248.4 x 202.4 x 134.5
Weight 10.5kg 10.5kg
