Quick DP3 Series 700w Vertical Windlass
Sale

Quick DP3 Series 700w Vertical Windlass

Quick
SKU:
QFSDP30712008A01
$2,491.75 $2,378.49
$2,491.75
(You save $113.26 )
(No reviews yet)
Current Stock:
Description

Oversize Product

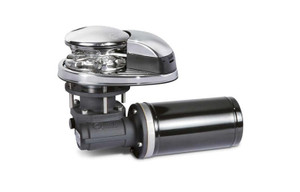

The Prince Series DP3 700W is a lightweight yet strong vertical anchor winch with an AISI 316-grade stainless steel base, IP67-rated motor, gypsy and chain inspection lid & an anodised aluminum lower gearbox.

Recommended Boat Size: 7 - 12 metres (23 - 40ft)

Features:

  • Vertical windlasses
  • AISI 316 grade stainless steel base
  • With and without drum
  • Manual Free-Fall system
  • Supplied with pressure lever inspection lid
  • IP67 watertight motors
  • Anodised aluminium gearbox
  • 3 year warranty from the date of sale

Standard Inclusions:

  • Clutch Release and Manual Lift Handle
  • Isolator/Circuit Breaker Panel
  • Reversing Solenoid

Optional Additions:

  • Remote Up/Down Panel Switch
  • Foot Switches: Up-Down for the deck
  • Digital Chain Counters
  • Hand Held Remote Controls
  • Wireless Remote Controls

Note: Capstan not included, but available upon request.

Model DP3 700
Watts 700w
Volts 12 (24)
Amps 90A
Chain Size (mm) 8 (10)
Rope Size 12/16mm
Max. Pull 850kg
Max. Working Load 250kg
Max. Chain Speed 27.4m/min
Drive Shaft Vertical
Capstan Option Yes
Chain/Rope Gypsy Yes
Deck Thickness 25 - 50mm
