Quick DP3 Series 1000w Vertical Windlass
Quick
$3,096.63
(No reviews yet)
Write a Review
Quick
Quick DP3 Series 1000w Vertical Windlass
Oversize Product

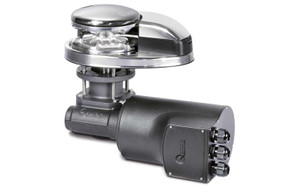

The Prince Series DP3 1000W is a lightweight yet strong vertical anchor winch with an AISI 316-grade stainless steel base, IP67-rated motor, gypsy and chain inspection lid & an anodised aluminum lower gearbox.
Recommended Boat Size: 7 - 12 metres (23 - 40ft)
Features:
- Vertical windlasses
- AISI 316 grade stainless steel base
- With and without drum
- Manual Free-Fall system
- Supplied with pressure lever inspection lid
- IP67 watertight motors
- Anodised aluminium gearbox
- 3 year warranty from the date of sale
Standard Inclusions:
- Clutch Release and Manual Lift Handle
- Isolator/Circuit Breaker Panel
- Reversing Solenoid
Optional Additions:
- Remote Up/Down Panel Switch
- Foot Switches: Up-Down for the deck
- Digital Chain Counters
- Hand Held Remote Controls
- Wireless Remote Controls
Note: Capstan not included, but available upon request.
| Model | DP3 1000 |
|---|---|
| Watts | 1000w |
| Volts | 12 (24) |
| Amps | 140A |
| Chain Size (mm) | 8 (10) |
| Rope Size | 12/16mm |
| Max. Pull | 1000kg |
| Max. Working Load | 370kg |
| Max. Chain Speed | 39.6m/min |
| Drive Shaft | Vertical |
| Capstan Option | Yes |
| Chain/Rope Gypsy | Yes |
| Deck Thickness | 25 - 50mm |
