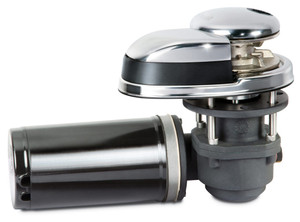

Quick DP2E Series Vertical Windlass

Quick DP2E Series Vertical Windlass

Quick
SKU:
QFSDP2E060006A01
$2,456.09
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Oversize Product



Special Order

will be contacted with an ETA

Some stock available "contact us"

The Prince Series DP2E windlass is equipped with an anodised aluminum epicyclical gearbox, that provides much higher efficiency (40% compared to equivalent traditional gearboxes).

It is a lightweight yet strong vertical anchor winch with an AISI 316-grade stainless steel base, IP66-rated motor and a gypsy and chain inspection lid.

Recommended Boat Size: 6 - 10 metres (20-33ft)



Features:

  • Vertical windlasses
  • AISI 316 grade stainless steel base
  • With and without drum rope and chain on a single gypsy
  • Manual Free-Fall system
  • Supplied with pressure lever inspection lid
  • IP66 (500-800W) watertight motors
  • Anodised aluminium gearbox
  • 3 year warranty from the date of sale

Standard Inclusions:

  • Clutch Release and Manual Lift Handle
  • Isolator/Circuit Breaker Panel
  • Reversing Solenoid

Optional Additions:

  • Remote Up/Down Panel Switch
  • Foot Switches: Up-Down for the deck
  • Digital Chain Counters
  • Hand Held Remote Controls
  • Wireless Remote Controls



Model DP2E 500 DP2E 800
Watts 500w 800w
Volts 12v 12v or (24v)
Amps 60A 84A (53A 24v)
Chain Gypsy Size (mm) 6 or 8mm 6 or 8mm
Rope Size 12mm 12mm
Max. Pull 620kg 820kg
Max. Working Load 200kg 290kg
Max. Chain Speed 22.9m/min 22.5m/min
Drive Shaft Vertical Vertical
Capstan Option Yes Yes
Chain/Rope Gypsy Yes Yes
Deck Thickness 20 - 40mm 20 - 40mm
