Quick DP2 Series 500w Vertical Windlass
Sale

Quick DP2 Series 500w Vertical Windlass

SKU:
QFSDP20512006A00
$2,012.56 $1,921.08
$2,012.56
(You save $91.48 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Oversize Product

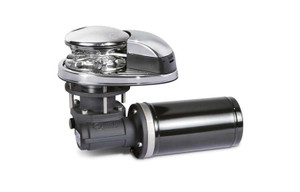

The Prince Series DP2 500W is a lightweight yet strong vertical anchor winch with an AISI 316-grade stainless steel base, IP66-rated motor, gypsy and chain inspection lid & technopolymer gearbox.

Recommended Boat Size: 5 to 9 metres (16 - 30ft)

Features:

  • Vertical windlasses
  • AISI 316-grade stainless steel base
  • Technopolymer gearbox
  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Supplied with pressure lever & Inspection lid
  • Watertight motor (IP66 rated)
  • Rope and chain kits sold separately (see related products)
  • 3 year warranty from the date of sale

Standard Inclusions:

  • Clutch Release and Manual Lift Handle
  • Isolator/Circuit Breaker Panel
  • Reversing Solenoid

Optional Additions (see related products):

  • Remote Up/Down Panel Switch
  • Foot Switches: Up-Down for the deck
  • Digital Chain Counters
  • Hand Held Remote Controls
  • Wireless Remote Controls

Note: GD Model = Gypsy and Drum

Model DP2 500
Watts 500w
Volts Std. 12 or (24)
Amps 80A
Chain Gypsy Size (mm) 6 or 8mm
Rope Size 12mm
Max. Pull 660kg
Max. Working Load 200kg
Max. Chain Speed 28.9m/min
Drive Shaft Vertical
Capstan Option Yes
Chain/Rope Gypsy Yes
Deck Thickness 20 - 30mm
