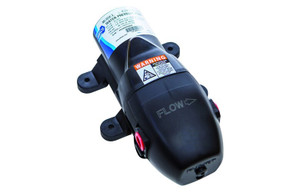

Par-Max HD3 Freshwater Pump 3GPM 60psi 12v

Par-Max HD3 Freshwater Pump 3GPM 60psi 12v

Jabsco
SKU:
J20-208
$383.00
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description

*Latest Heavy Duty Models*

Installed to provide on‐demand flow and pressure of freshwater to galleys, showers, washing machines, etc. These pumps are equipped with a bypass which enables smoother flow and decreases cycling, and provide similar pressure to that in a home on land.

These HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. With an open flow rate of 3 GPM (11 LPM) and 60 PSI (4.1 bar), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint.

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications both large and small.

Kit includes:

  • 1 x Par-Max HD3 Freshwater Pump
  • 2 x 1/2" (13mm) straight hosebarbs
  • 1 x 40 mesh inline quick connect strainer

Features:

  • Typical rule of thumb for sizing is 1 GPM per outlet
  • Co-molded diaphragm technology for long life and durability
  • Heavy duty motors and cast aluminum lower housings which allow for longlife, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Equipped with integrated bypass module to reduce cycling and provide smoother flow



JPW SKU J20-208
Jabsco Part No. Q301J‐118S‐3A
Replaces Old Lighter Duty Versions J20-108
(31395-4012, 31395-0092)
Voltage 12V
Open Flow 3 GPM
(11 LPM)
Shut-off Pressue 60 PSI
(4.1 BAR)
Max Amp Draw 9A
Recommended Fuse Size 15A



Motor Design Brushed, permanent magnet TENV
Pumphead upper housing material Fiber reinforced polypropylene
Diaphragm Santoprene
Check Valves EPDM
Max Inlet Pressure 30 PSI (2.1 Bar)
Fluid Temp Range 32°F – 140°F (0°C – 60°C)
Dry Self-priming Capability 8ft min (2.4m min)
Certifications CE, ISO8846, RCM
Water Ingress protection IPX6
Warranty 3 years
