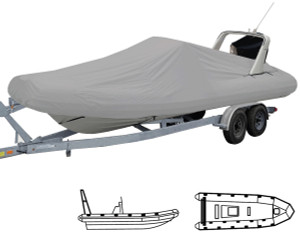

Oceansouth Rib Boat Cover designed to fit rib boats with center consoles and rear arches (max. arch height 1.5m).

This cover is constructed of the highest quality 280gsm Atlas marine fabric with flat double lock seam stitching and UV threads ensure an extended life expectancy.

Includes a full set of rope ends, cleats, ratchets and tie-down rope for easy gathering and tightening down the cover.

Ideal for winter or long-term storage (not trailerable)

Features:

Design to fit rib boats with centre consoles and rear arches (Max. Arch Height 1.5m).
Ideal for winter or long-term storage.
Water resistant and breathable fabric
Highest quality 280gsm Atlas marine fabrics (7 year life expectancy)
Flat double lock seam stitching
High quality UV threads
6mm braided rope encased in hem
Includes a full set of rope ends, rope cleats, tie-down rope and rope ratchets
Supplied in a handy bag for storage when not in use

Also available for highway towing: Oceansouth Rib Boat Storage & Towing Cover

Colour: Light Grey

For correct sizing, we recommend to use both the Measuring Instructions and Overall Fabric Measurements guides below to ensure you choose the correct cover size for your boat.

Note: Total length of the fabric has been made to cover the total length of the boat, from the bow to the stern. This must also accommodate for bow rails, rollers or sprit as these additional features will add to the overall length of the cover.

Note: These covers are designed to protect the boat only, and do not accommodate outboards. Vented, Half or Full covers for outboards are sold separately - please see here: Outboard Engine Covers

JPW SKU	MPN	Boat Length	Max Beam Width	Fabric W x L
JPW11352	MA 603-8	4.7 – 5.0m	2.3m	4850 x 6000mm
JPW11353	MA 603-9	5.1 – 5.3m	2.3m	4850 x 6600mm
JPW11354	MA 603-10	5.4 – 5.6m	2.3m	4850 x 7000mm
JPW11355	MA 603-11	5.7 – 5.9m	2.3m	4850 x 7300mm
JPW11356	MA 603-12	6.0 – 6.3m	2.3m	4900 x 7600mm
JPW11357	MA 603-13	6.4 – 6.7m	2.5m	5050 x 7900mm
JPW11358	MA 603-14	6.8 – 7.1m	2.8m	5350 x 8400mm
JPW11359	MA 603-15	7.2 – 7.5m	2.8m	5350 x 8700mm
JPW11360	MA 603-16	7.6 – 7.9m	2.8m	5350 x 9100mm
JPW11361	MA 603-17	8.0 – 8.3m	2.8m	5350 x 9500mm
JPW11362	MA 603-18	8.4 – 8.7m	3.1m	5650 x 10000mm
JPW11363	MA 603-19	8.8 – 9.1m	3.1m	5650 x 10500mm

Measuring your boat

Measure the length: Measure the centreline length using a straight measurement from bow to stern.
Measure the width: Measure a straight line across the widest point of your boat.

Overall fabric measurements

Measure the width: Take the overall fabric width of your suggested cover and compare it by measuring across widest point on your boat and across the highest point of boat fittings (i.e. windscreens, cabins) to the point on the hull where the hem of the cover will finish.
Measure the length: Take the overall fabric width of your suggested cover and compare it by measuring across the length of your boat from bow to stern, and across the highest point of any fittings (windscreens, cabins, etc.) to the point on the hull where the hem of the cover will finish.
