The HotShot HD5 features a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Pumping 5 gallons per minute at almost 70psi, this is an extremely reliable high-flow and high-pressure diaphragm pump.
The HotShot HD5 will provide years of clean decks and satisfaction.

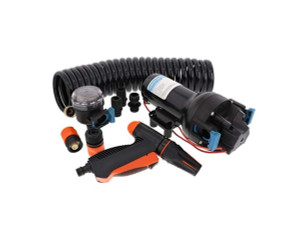

Kit includes:
- 1 x HotShot HD5 Washdown Pump
- 2 x 1/2" (13mm) straight hosebarbs
- 2 x 3/4" (19mm) straight hosebarbs
- 1 x 3/4" GHT fittings
- 1 x 90° 40 mesh quick connect strainer
- 1 x Deluxe trigger nozzle & quick connect hose adapters
Features:
- Co-molded diaphragm technology for long life and durability
- HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Self‐Priming
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- A plastic housing protects the motors from corrosion.
- Provides exceptional performance in an economical footprint.
JPW SKU | J20-248 |
---|---|
Jabsco Part No. | P501J-119N-3A |
Replaces Old Versions | J20-148 (82505-0092, 32700-0092, 32700-0392) |
Voltage | 12V |
Open Flow | 5 GPM (18.9 LPM) |
Shut-off Pressue | 70 PSI (4.8 bar) |
Max Current Draw | 16A |
Recommended Fuse Size | 25A |
Motor Design | Brushed, permanent magnet TENV |
---|---|
Pumphead upper housing material | Fiber reinforced polypropylene |
Diaphragm | Co-molded TPV |
Check Valves | EPDM |
Max Inlet Pressure | 30 PSI (2.1 Bar) |
Fluid Temp Range | 32°F – 140°F (0°C – 60°C) |
Dry Self-priming Capability | 8ft min (2.4m min) |
Certifications | CE, ISO8846, RCM |
Ingress protection | IPX6 |
Warranty | 3 years |
