Jabsco Hotshot HD4 Washdown Saltwater Pump Kit 60psi 12v
Sale

Jabsco Hotshot HD4 Washdown Saltwater Pump Kit 60psi 12v

Jabsco
SKU:
J20-262
$498.75 $476.08
$498.75
(You save $22.67 )
(No reviews yet)
Current Stock:
10
Adding to cart… The item has been added
Description

The HotShot HD4 features a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Pumping 4 gallons per minute at almost 60psi, this is an extremely reliable high-flow and high-pressure diaphragm pump.

The HotShot HD4 will provide years of clean decks and satisfaction.

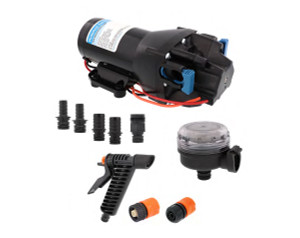

Kit includes:

  • 1 x HotShot HD4 Washdown Pump
  • 2 x 1/2" (13mm) straight hosebarbs
  • 2 x 3/4" (19mm) straight hosebarbs
  • 1 x 3/4" GHT fittings
  • 1 x 90° 40 mesh quick connect strainer
  • 1 x Deluxe trigger nozzle & quick connect hose adapters
  • 1 x 7.6m (25") hose coil

Features:

  • Co-molded diaphragm technology for long life and durability
  • HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Self‐Priming
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Full kit ncludes 25' (7.6m) hose coil
  • A plastic housing protects the motors from corrosion.
  • Provides exceptional performance in an economical footprint.



JPW SKU J20-262
Jabsco Part No. Q401J-118N-4A
Replaces Old Versions J20-162
(32900-0092, 32901-0092, 82904-0092)
Voltage 12V
Open Flow 4 GPM
(15.1 LPM)
Shut-off Pressue 60 PSI
(4.1 bar)
Max Current Draw 11A
Recommended Fuse Size 20A



Motor Design Brushed, permanent magnet TENV
Pumphead upper housing material Fiber reinforced polypropylene
Diaphragm Co-molded TPV
Check Valves EPDM
Max Inlet Pressure 30 PSI (2.1 Bar)
Fluid Temp Range 32°F – 140°F (0°C – 60°C)
Dry Self-priming Capability 8ft min (2.4m min)
Certifications CE, ISO8846, RCM
Ingress protection IPX6
Warranty 3 years
