Jabsco Hotshot 3 Washdown Pump 3GPM 50psi 12v

Jabsco Hotshot 3 Washdown Pump 3GPM 50psi 12v

Jabsco
SKU:
J20-235
$363.00
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

The HotShot 3.0 is used for on‐demand spray to clean anchors, buoys, fishing areas, etc, pumping 3 gallows per minute at 50psi, this is an extremely robust and reliable high-flow and high-pressure diaphragm pump.

Sometimes used with a Y valve to serve a dual purpose of livewell circulation or plumbed off of the livewell inlet to reduce number of thru‐hull fittings.

The HotShot 3 will provide years of clean decks and satisfaction.

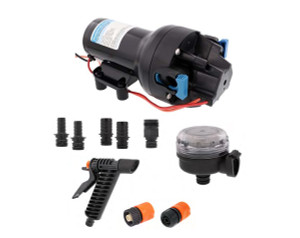

Kit includes:

  • 1 x HotShot 3 Washdown Pump
  • 2 x 1/2" (13mm) straight hosebarbs
  • 2 x 3/4" (19mm) straight hosebarbs
  • 1 x 3/4" GHT fittings
  • 1 x 40 mesh inline quick connect strainer
  • 1 x Deluxe trigger nozzle & quick connect hose adapters

Features:

  • Co-molded diaphragm technology for long life and durability
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Self‐Priming
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Provides exceptional performance in an economical footprint.



JPW SKU J20-235
Jabsco Part No. 32305-5012-3A
Voltage 12V
Open Flow 3 GPM
(11 LPM)
Shut-off Pressue 50 PSI
(3.4 bar)
Max Current Draw 7.5A
Recommended Fuse Size 15A



Motor Design Brushed, permanent magnet TENV
Pumphead upper housing material Fiber reinforced polypropylene
Diaphragm Co-molded TPV
Check Valves EPDM
Max Inlet Pressure 30 PSI (2.1 Bar)
Fluid Temp Range 32°F – 140°F (0°C – 60°C)
Dry Self-priming Capability 10ft min (3m min)
Certifications CE, ISO8846, RCM
Ingress protection IPX6
Warranty 3 years
