Description

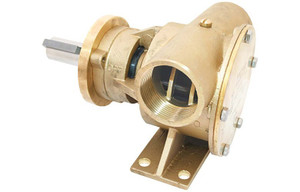

A range of heavy duty bronze pumps with flexible impellers, electrically operated clutches (12 or 24 volt) and long life mechanical seal.

These high capacity, reliable pumps are suitable for bilge, deckwash, ballast transfer or fire fighting applications on leisure or commercial craft.

The pumps are belt driven from the main engine via the aluminium pulley supplied (single "B" or double "A" section) with the pump.

The electro-magnetic clutch allows the pumps to be remote controlled (clutch engaged or disengaged) via a switch from anywhere outside the engine room via float switches or Hydro-Air switches. Fitting a vacuum switch eliminates all risk of dry running damage.

Features:

  • Robust bronze bodied flexible impeller pumps
  • Bilge debris presents no problem
  • Easily serviced and maintained
  • Should not be run dry
  • Supplied with neoprene impellers
  • 1 1/2" BSP female ports
  • Self priming to 4.5 metres.
  • Flow rate: 15,000 litres per hour (3,300 GPH) at 3 metre head @ 1,500 RPM
  • Dimensions (LxWxH): 239 x 153 x 178mm



JPW SKU J50-144 J50-145 J50-146 J50-147
Jabsco Part No. 50200-2211 50200-2311 50200-2011 50200-2111
Voltage 12V 24V 12V 24V
Pulley Section (Single) 1B  (Single) 1B  (Double) 2A (Double) 2A
Fuse size 5A 5A 2.5A 2.5A
