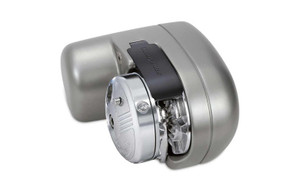

Horizontal On-Deck Windlass - Hector Series

Horizontal On-Deck Windlass - Hector Series

Quick
SKU:
QFSHC07120008A00
$4,002.77
(No reviews yet)
Current Stock:
Description

Oversize Product

For boats from 7 to 15 metres (23 - 49ft)

The Hector is the big brother of the Genius series of windlass, and it comes with built-in soilenoids for easy installation and is IP66 watertight. This winch is the best choice when there is little room in the anchor locker for a motor and gear box.

The Hector installs completely above deck.

Features:

  • Base in anodised aluminium in hard oxide
  • Jacket in composite material or in anodisex aluminium in hard oxide
  • 8/10mm chain with 12/16 rope gypsy
  • Integrated solenoids
  • Emergency manual lift system
  • Manual Free Fall system
  • Integrated sensor and magnet for chain counter
  • 3 year warranty from the date of sale

Standard Inclusions:

  • Clutch Release and Manual Lift Handle
  • Isolator/Circuit Breaker Panel

Optional Additions:

  • Foot Switches: Up-Down for the deck
  • Digital Chain Counters
  • Hand Held Remote Controls
  • Remote Up/Down Panel Switch

Note: Supplied with or without drum

Model HC3 700 HC3 & HC3 D 1000 HC3 1500 (12v) HC3 1500 (24v)
Watts 700w 1000w 1500w 1500w
Volts 12V 12 or 24V 12v 24v
Amps 90A 140A 150A 85A
Chain 8mm 8 or 10mm 10 mm 10mm
Rope Size 12mm 16mm 16mm 16mm
Max. Pull 1100kg 1300kg 1500kg 1500kg
Max. Working Load 300kg 400kg 450kg 550kg
Max. Chain Speed 26m/min 37.3m/min 37.5m/min 40m/min
Drive Shaft Horizontal Horizontal Horizontal Horizontal
Capstan Option Yes Yes Yes Yes
Chain/Rope Gypsy Yes Yes Yes Yes
Boat Length 7-10m 10-13m 12-15m 12-15m
