![Extra Heavy Duty Blower Flange Mount 100mm 12V or 24V Extra Heavy Duty Blower Flange Mount 100mm 12V or 24V](https://cdn11.bigcommerce.com/s-wgzijng1sc/images/stencil/300x300/products/1902/4450/P-J70-202__23431.1704860057.jpg?c=1)

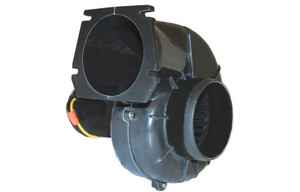

This heavy duty flange mount blower is designed to remove fumes and petrol vapours from the engine room prior to starting the engine. It can also be used for exhausting warm air from galleys or engine rooms, ventilating odours or steam from heads and general marine air circulation.
It has a high capacity output with quiet running Delrin rotor. The intermittent motor is rated for maximum 1 hour with 50% duty cycle = 1 hour on then 1/2 hour off for motor cool down.
Features:
- Heavy duty blower
- Flange mount
- Intermittent use
- Dimensions: 200 x 171 x 200mm
- Port connection: 75mm
- Tough reinforced plastic housing
- Mount to any flat surface
- Flanged outlet and slip-on inlet ducting connection
- Efficient high volume air flow
- Low current draw
- Corrosion-resistant materials throughout
- Complies with ISO 9097 MARINE
JPW SKU | Voltage | Air Flow | Amps | Fuse Size |
---|---|---|---|---|
J70-210 | 12V | 4m3/min (150CFM) | 6.5A | 10A |
j70-211 | 24V | 4.2m3/min (150CFM) | 3.3A | 5A |
Also available: Standard Blowers and Extra Heavy Duty Blowers (see related products)
