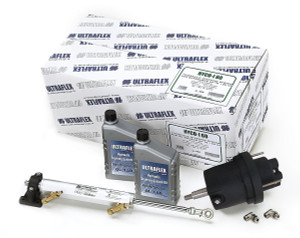

![Ultraflex HYCO-1 150HP Inboard Hydraulic Steering Kit Ultraflex HYCO-1 150HP Inboard Hydraulic Steering Kit](https://cdn11.bigcommerce.com/s-wgzijng1sc/images/stencil/300x300/products/2349/5268/JPW18938__07189.1705895296.jpg?c=1)
- Suits UP20 series helms
- Balanced: the number of turns lock-to-lock is equal port to starboard and vice versa
- Recommended for inboards up to 8m where maximum boat speeds do not exceed 25 knots
- These cylinders are recommended for use with UP20 series helms and pre-assembled hoses (KIT OB and KIT OB/R5)
Type | UC69-I |
---|---|
Rod Diameter | 14mm |
Volume | 69cc - 4.2 cubic inch |
Torque | 32kg |
Output Force | 168kg |
Inside Diameter | 25mm |
Stroke | 150mm |
9.5mm Fittings | For high pressure flex hose |
Wheel Turns | 3.5 turns (UP20) |
