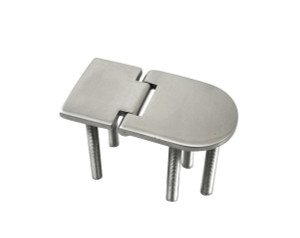

Stainless steel flat door hinges with external hinge, available in three sizes to suit a range of applications.
Features:
- 316 marine grade stainless steel
- Includes fixing studs (suits M6 nuts)
- Stud length: 45mm
- Sold individually
Also available in other sizes with external hinges (see related products).
JPW SKU | Size (mm) | Dimensions - see diagram within images (mm) | ||||
---|---|---|---|---|---|---|
A | B | C | D | E | ||
JPW19187 | 70 x 40 | 70 | 40 | 42 | 31 | 23 |
JPW19188 | 72 x 65 | 72 | 65 | 55 | 40 | 35 |
JPW19189 | 83 x 65 | 83 | 65 | 55 | 40 | 35 |
