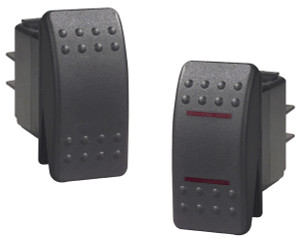

These waterproof rocker switches from Carling Industries feature snap-in panel mounting, an interchangeable actuator cover and quick-connect terminals with barriers.
The C2 range features the popular hard finished nylon actuator, while the indicator models have a red bar lens for incandescent illumination.
The multi-step mounting wings provide a secure fit for panel thicknesses of 0.8mm thru 6.35mm, in an industry standard 36x21mm mounting hole.
Features:
- V-Series Contura II rocker switch
- ON/OFF actuation
- Constructed of thermoplastic polycarbonate
- Dual seal protection prevents ingress of water, dust and debris.
- Interchangable actuator
- Clean connections
- Brass roller pin
- Waterproof rating: IP66/IP68 (for front panel components)
- Temperature rating: -40°C to +85°C
- Switch circuit #1 (see diagram within images)
JPW SKU | Carling Code | Pole | Voltage | Amps | LED indication |
---|---|---|---|---|---|
JPW12604 | V1DAS00BAZC | Single | 12V | 20A | None |
JPW12602 | V1DAB60BAMC | Single | 12V | 20A | 1 |
JPW12619 | V1BAS00BAZC | Single | 24V | 15A | None |
JPW12601 | V1BAB80BAMC | Single | 24V | 15A | 1 |
JPW12615 | VADAS00BAZC | Double | 12V | 20A | None |
JPW12614 | VADAB60BAMC | Double | 12V | 20A | 1 |
JPW12623 | VABAB80BAMC | Double | 24V | 15A | 1 |
Also available in other switch configurations (see related products)
