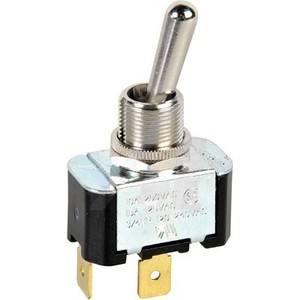

The Carling F-Series 2FC53-78 Single Pole Toggle Switch is a general purpose workhorse tailored to meet most any need.
The standard range is ideal for 12 or 24 VDC control and available in either momentary or maintained circuits in both single and double throw actions.
These high quality switches feature corrosion resistant nickel plated brass toggles, bushing and mounting hardware.
Product Features:
- Ratings to 21A
- Suitable for low voltage 12/24V DC
- Manufacturer Part Number - 2FC53-78
Series: | F-Series |
---|---|
Actuator Style: | Toggle |
Number of Poles: | 1 |
Configuration: | On/Off/On |
12VDC Rating: | 21 amps |
24VDC Rating: | 9 amps |
Voltage: | 12 VDC, 24 VDC |
Termination: | Push On |
Dielectric Strength: | 1000V - live to dead metal parts |
Electrical Life: | 50,000 cycles - maintained, 25,000 cycles - momentary |
Mechanical Life: | 100,000 cycles |
Base Material: | Phenolic |
Actuator Material: | Brass/Nickel Plate |
Bushing Material: | Brass/Nickel Plate |
Operating Temperature: | -17.8°C to +65.6°C |
