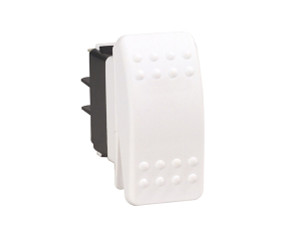

Carling C2 Rocker Switch On/Off/(On) White Single Pole 12V 1xLED
Carling SwitchesThese waterproof rocker switches from Carling Industries feature snap-in panel mounting, an interchangeable actuator cover and quick-connect terminals with barriers.
The C2 range features the popular hard finished nylon actuator, while the indicator models have a red bar lens for incandescent illumination.
The multi-step mounting wings provide a secure fit for panel thicknesses of 0.8mm thru 6.35mm, in an industry standard 36x21mm mounting hole.
Features:
- V-Series Contura II rocker switch
- ON/OFF/(ON) Momentary actuation
- Position shown inside brackets are momentary action only (not latching)
- Constructed of thermoplastic polycarbonate
- Dual seal protection prevents ingress of water, dust and debris.
- Interchangable actuator
- Clean connections
- Brass roller pin
- Waterproof rating: IP66/IP68 (for front panel components)
- Temperature rating: -40°C to +85°C
- Switch circuit #7 (see diagram within images)
SKU | Carling Code | Current Rating | Voltage | LED Indication | Pole |
---|---|---|---|---|---|
JPW12597 | V7DAB60WAMY | 20A | 12V | 1 | Single |
Also available in other switch configurations (see related products)
