Bomar Access Hatch Aluminium Tread Plate

Bomar Access Hatch Aluminium Tread Plate

BOMAR
$1,125.76 - $3,793.35
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description



These Bomar Access Hatches feature a high-quality marine grade, anodised aluminium tread plate cover along with 316 stainless steel hardware.

These include a 316 stainless steel dog fastener with latch position indicator as well as a flush 'D' handle for easy removal and replacement of the hatch cover.

All dog fasteners are recessed into the hatch cover so chains, cables or rope will not snag on them.

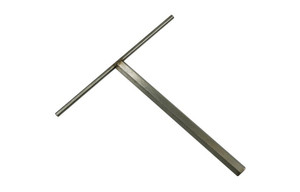

The 316 stainless steel hex drive tool handle features a blunt end and a screwdriver top to break the ice or to remove any debris from the dogs of 'D' handle (Sold Separately, see related products)

The Delrin bushing allows for smooth dog operation that also isolates the stainless dog fasteners from the aluminium plate.

Its compressed gasket will deflect against the frame walls to keep the cover centred in the frame opening. Its multiple point loading gasket profiles will resist leakage even under dynamic water pressures and the return bend in the frame profile will stop over-compression of the gasket if heavy loads are placed on the hatch cover.

Features:

  • High-quality 5 bar, marine-grade, anodised aluminium tread plate cover and welded aluminium frame
  • 316 stainless steel dog fastener
  • 316 stainless steel flush 'D' handle
  • Delrin bushing
  • BUNA-N o-ring approved for use in the petroleum and chemical environments
  • Compressed gasket
  • Multiple point loading gasket profile
  • Pre-drilled holes around frame

* Optional 316 stainless steel hex drive tool handle - sold separately, see related products
* Optional on request: Heavy 12-gauge 316 stainless steel fully welded frame



JPW SKU MPN Opening (A)
X x Y (mm)		 Cut-Out (B)
X x Y (mm)		 O.D. of Deck Flange (C)
X x Y (mm)
JPW171701 N40127 565 x 362 622 x 419 677 x 474
JPW171702 N40128 717 x 565 774 x 622 830 x 677
JPW171703 N40129 260 x 260 317 x 317 372 x 372
JPW171704 N40130 508 x 254 565 x 311 620 x 366
JPW171705 N40131 717 x 463 775 x 521 830 x 576
JPW171706 N40132 565 x 565 622 x 622 677 x 677
JPW171707 N40133 870 x 565 927 x 622 982 x 677
