Bomar 2000 Series Opening Rectangular Portlights

Bomar 2000 Series Opening Rectangular Portlights

BOMAR
$650.65 - $887.32
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

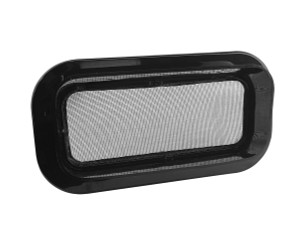

Bomar 2000 Series rectangular portlights are made from extruded aluminum. They feature a tinted acrylic lens and come complete with insect screen and trim.

These opening portlights have multiple quick action clamps that secure the lens against the seal to create a water tight closure. With an internal trim ring, these portlights have no visible external screws to install.

Available in either Black or Anodised Silver.

Features:

  • Heavy duty extruded aluminum frame
  • Tough acrylic smoked lens
  • Anodised aluminum internal trim ring
  • Internal mounting holes - no visible fixing screws
  • Deep drain angle
  • Adjustable quick dogs
  • Hull thickness - min 6mm to max 36mm
  • Insect screen included
  • CE approved

Also available (fixed style): Bomar 2000 Series Fixed Portlight Rectangular 173mm x 349mm Black



JPW SKU
(Anodised Silver)		 JPW SKU
(Black)		 Bomar MPN# Clear
View		 Cut Out
A x B (mm)		 Outside Portlight
A x B (mm)		 Outside Trim
(mm)
JPW171550 JPW171551 NC2410 243 x 94 305 x 156 325 x 176 329 x 179
JPW171552 JPW171553 NC2414 343 x 94 405 x 156 425 x 176 429 x 179
JPW171560 - NC2512 287 x 111 349 x 173 370 x 194 373 x 197
JPW171556 JPW171557 NC2515 367 x 110 429 x 171 449 x 192 452 x 195
JPW171558 - NC2523 565 x 110 627 x 171 648 x 192 651 x 195
