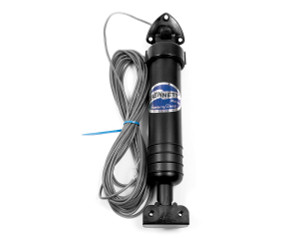

![Bennett Marine Standard Hydraulic Trim Tab Actuator with Wiring 340mm Bennett Marine Standard Hydraulic Trim Tab Actuator with Wiring 340mm](https://cdn11.bigcommerce.com/s-wgzijng1sc/images/stencil/300x300/products/2571/5782/JPW16157B__19908.1707716152.jpg?c=1)
Bennett hydraulic actuators are built to last, maintenance-free, and backed by Bennett’s legendary support.
Features:
- Available in three lengths.
- All actuator models provide a 2½" (63.5mm) standard stroke.
- Stroke can be modified to meet unique specifications.
To establish the length of an actuator, simply measure from the very top to the very bottom when it is in its fully-retracted state.
JPW SKU | Size | Length Retracted | Length Extended |
---|---|---|---|
JPW16157 | Standard | 340mm | 403mm |
JPW16159 | Short | 290mm | 353mm |
JPW16160 | Extra Short | 270mm | 333mm |
How to identify your existing actuator?
Measure the overall length of your actuator, from the top to the very bottom of the hinge when the ram is retracted.
- Standard Actuator = 340mm (13 2/5") overall measurement, from the very top to the bottom of the base hinge. Identified with 4 rings on the actuator base.
- Short Actuator = 290mm (11 3/7") overall measurement, from the very top to the bottom of the base hinge. Identified with 3 rings on the actuator base.
- Extra Short Actuator = 270mm (10 5/8") overall measurement, from the very top to the bottom of the base hinge. Identified with 3 rings on the actuator base.
All installation and owner manuals are now provided in digital format. You can find these via the Bennett Marine website: BennettTrimTabs.com/Install
