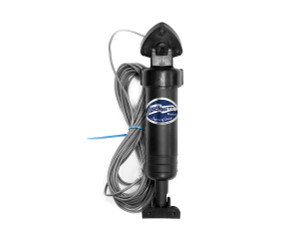

Bennett Marine Extra Short Hydraulic Trim Tab Extra Actuator with Wiring 270mm

Bennett Marine Extra Short Hydraulic Trim Tab Extra Actuator with Wiring 270mm

Bennett
SKU:
JPW16160B
$343.28
(No reviews yet)
Current Stock:
6
Adding to cart… The item has been added
Description

Bennett actuators are strong but flexible nylon/fiberglass hydraulic cylinders. The piston-like arms push tabs into position.

Fluid flows through a concealed hole in the upper hinge at the top of the actuator — thus eliminating external hoses subject to damage.

Features:

  • Type: Extra Short Ram
  • Overall Length Retracted: 270mm
  • Overall Length Extended: 333mm
  • Stroke: 63.5mm



How to identify your existing actuator?

Measure the overall length of your actuator, from the top to the very bottom of the hinge when the ram is retracted.

  • Standard Actuator = 340mm (13 2/5") overall measurement, from the very top to the bottom of the base hinge. Identified with 4 rings on the actuator base.
  • Short Actuator = 290mm (11 3/7") overall measurement, from the very top to the bottom of the base hinge. Identified with 3 rings on the actuator base.
  • Extra Short Actuator = 270mm (10 5/8") overall measurement, from the very top to the bottom of the base hinge. Identified with 3 rings on the actuator base.



All installation and owner manuals are now provided in digital format. You can find these via the Bennett Marine website: BennettTrimTabs.com/Install
