![Bennett Marine Classic Hydraulic Trim Tab Complete System 12" Plate with Electric Indicator Control Bennett Marine Classic Hydraulic Trim Tab Complete System 12" Plate with Electric Indicator Control](https://cdn11.bigcommerce.com/s-wgzijng1sc/images/stencil/300x300/products/2501/5612/P-JPW16281__85132.1707455583.jpg?c=1)

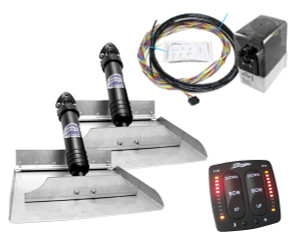

Bennett Marine Classic Hydraulic Trim Tab Complete System 12" Plate with Electric Indicator Control
Bennett
AW-16549334941
Items that are out of stock or low please contact us to confirm current stock levels sales@sadlersmaritime.com.au
New items added daily. Item you're looking for not listed? Contact us!
Hydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride and get on plane faster.
Balance loads, plane faster, increase efficiency and performance with Bennett hydraulic trim tabs – known for power, precision, and durability.
Kit contains:
*See related products for complete Classic kits with Rocker Switch or AutoTrim Pro control. Also available with 12" trim tab plane assemblies.
The EIC Control packs three sophisticated features into one control:
The EIC control is water resistant, highly accurate and features variable intensity LEDs for night or day. Features a relay module mounted near the transom, which simplifies installation by reducing the number of wires to run to the helm.
Features:
JPW SKU | Kit Type | Trim Tab Size (Span x Chord) |
Actuator | Recommended Boat Size |
---|---|---|---|---|
JPW16219 | 129EIC | 12" x 9" (305 x 228mm) |
Single | 4 - 6m |
JPW16002 | 189EIC | 18" x 9" (610 x 228mm) |
Single | 6 - 7m |
JPW16220 | 249EIC | 24" x 9" (610 x 228mm) |
Single | 6 - 8m |
How Trim Tabs Work:
Bennett trim tabs most often attach to the bottom edge of the transom (although other mounting variations are available). When the helm control is pressed, the trim tabs move up or down. Water-force on the trim tab creates an upward pressure, raising the stern and lowering the bow. Properly sized trim tabs improve the performance of your boat in a wide range of weight, weather and water conditions.
In general, trim tabs operate in reverse of what you may think. The port (left) button controls the starboard (right) tab. Conversely, the starboard (right) button controls the port (left) tab. The helm control is wired so that all you have to do is press the control in the direction you want the bow to move. Don’t worry about which trim tab is moving. The proper use of Bennett Trim Tabs becomes second nature after a short time.
All installation and owner manuals are now provided in digital format. You can find these via the Bennett Marine website: BennettTrimTabs.com/Install
