Bennett Marine Classic Hydraulic Trim Tab Complete System 12" Plate with Rocker Control

Bennett Marine Classic Hydraulic Trim Tab Complete System 12" Plate with Rocker Control

Bennett
$1,363.68 - $3,039.47
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Hydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride and get on plane faster.

Balance loads, plane faster, increase efficiency and performance with Bennett hydraulic trim tabs – known for power, precision, and durability.

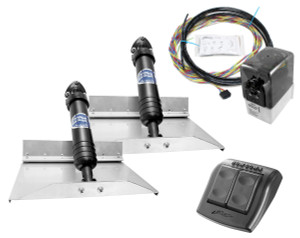

Kit contains:

  • 2 x Trim plane assemblies (Riveted Angle)
  • 2 or 4 x Hydraulic actuators (A1101A)
  • 1 x Hydraulic Power Unit (V351HPU1)
  • 1 x Helm Rocker Switch Control (ES2000)
  • All necessary Hydraulic wiring, tubing, hardware and installation video.

*See related products for complete Classic kits with EIC controls or AutoTrim Pro control. Also available with 9" trim tab plane assemblies.

Features:

  • Get on plane fast, and stay on plane at intermediate speeds.
  • Correct listing and uneven loads.
  • Improve visibility and safety.
  • Reduce pounding and eliminate porpoising.
  • Increase speed and fuel efficiency.
  • Low maintenance, long-term value, and easy to service.
  • Exclusive transom mount inter-locking tab design.



JPW SKU Kit Type Trim Tab Size
(Span x Chord)		 Actuator Recommended
Boat Size
JPW16000 1212E 12" x 12"
(305 x 305mm)		 Single 5 - 7m
JPW16044 1812E 18" x 12"
(610 x 305mm)		 Single 6 - 8m
JPW16021 2412E 24" x 12"
(610 x 305mm)		 Double 7 - 9m
JPW16045 3012E 30" x 12"
(762 x 305mm)		 Double 7 - 9m
JPW16017 3612E 36" x 12"
(914 x 305mm)		 Double 8 - 10m
JPW16024 4212E 42" x 12"
(1067 x 305mm)		 Double 9 - 11m
JPW16025 4812E 48" x 12"
(1219 x 305mm)		 Double 11 - 13m
JPW16027 5412E 54" x 12"
(1371 x 305mm)		 Double 15 - 18m
Larger trim tabs below are not available to order online
(PRICE ON APPLICATION)
JPW16028 6012E 60" x 12"
(1524 x 305mm)		 Double 18 - 20m
JPW16029 6612E 66" x 12"
(1676 x 305mm)		 Double 20 - 22m
JPW16031 7212E 72" x 12"
(1829 x 305mm)		 Double 22 - 24m



















































How Trim Tabs Work:

Bennett trim tabs most often attach to the bottom edge of the transom (although other mounting variations are available). When the helm control is pressed, the trim tabs move up or down. Water-force on the trim tab creates an upward pressure, raising the stern and lowering the bow. Properly sized trim tabs improve the performance of your boat in a wide range of weight, weather and water conditions.

In general, trim tabs operate in reverse of what you may think. The port (left) button controls the starboard (right) tab. Conversely, the starboard (right) button controls the port (left) tab. The helm control is wired so that all you have to do is press the control in the direction you want the bow to move. Don’t worry about which trim tab is moving. The proper use of Bennett Trim Tabs becomes second nature after a short time.



All installation and owner manuals are now provided in digital format. You can find these  via the Bennett Marine website: BennettTrimTabs.com/Install
