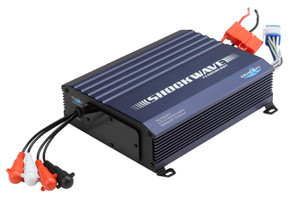

The AD600.5 5-Channel Amplifier is ready to maximize your sound! This amplifier provides 600W total power output to deliver outstanding audio quality and volume in the loudest of environments.
With Digital (Class D) Technology, Shockwave Technology, and more – this amp delivers high-performance, reliability, and sound quality second-to-none.
Unleash the power with 600W of pure power (75W per speaker channel + 300W Subwoofer channel at 2 Ohms or 50W per speaker channel + 200W Subwoofer channel at 4 Ohms), the 5-Channel Amplifier packs enough punch for even the loudest of environments.
Digital amplifiers are much more efficient than traditional amplifiers, producing less heat, lowering power consumption, reducing strain on batteries and charging systems, and ideal for powersport and marine installations.
Shockwave Technology™ incorporates Digital IC’s with specially designed low-noise circuitry to produce high-quality, true sound reproduction from any source. The technology used also reduces unwanted EMI (Electromagnetic Interference), which can cause noise in your audio system. Shockwave Technology™ is now the only sensible amplifier solution for powersport or marine applications.
Rain? Dust? No problem! This high-performance, waterproof & dustproof amplifier will withstand harsh conditions, while never interrupting the music that makes the moments.
Designed to support a variety of applications, the 5/4/3-Channel Amplifier runs at both 4ohm and 2ohm speaker configurations from RCA input connections. Running 2ohm configurations allows more speakers to be powered and ideal for high background noise environments.
Features:
- 600W 5-Channel Digital Amplifier
- IP65 Rated
- Nickel plated connectors
- LED Indicator
- Remote Turn-On
- Turn-On/Off Muting Circuit (Soft Mute)
- 2 year Warranty
Type: | Class D Digital Amplifier |
---|---|
Color: | Blue |
Output Modes: | Mono, Stereo, Bridge |
Waterproof / IP Rating: | IP65 - Dust tight and protection against heavy seas, or powerful jets of water |
Conformal Coated PCB: | Yes |
Heavy Duty Waterproof Connectors: | Yes |
Input Channels: | 5x RCA |
Speaker Level Input: | 5 channels |
Output Channels: | 5/4/3 |
Input Impedance: | 22k (RCA), 470 Ohms (speaker) |
Output impedance (per channel): | 4 Ohms / 2 Ohms |
Power Output (max): | 600W |
Power Output (max) @ 4 Ohms, ≤1% THD: | 4x 50W + 1x 200W |
Power Output (max) @ 2 Ohms, ≤1% THD: | 4x 75W + 1x 300W |
Power Output – Bridged @ 4 Ohms, THD ≤1%: | 2x 150W |
S/N (A-weighted, 1W @ 4 Ohms): | ≥70dB |
Frequency Response: | 10-20kHz (1CH to 4CH), 10-250Hz (5CH) |
Channel Separation: | ≥48dB |
Input Sensitivity (Low Level): | 200mV to 4V |
Input Sensitivity (High Level): | 600mV to 10V |
Bridge Mode: | Yes (CH1 – CH4) |
Bass Boost Adjustment: | Variable 0 to +18dB (Sub CH) |
Bass Boost Frequency: | 50Hz |
High Pass Electronic Crossover (12dB/Oct.): | Variable 50 – 250Hz |
Low Pass Electronic Crossover (12dB/Oct.): | Variable 50 – 250Hz |
Current Draw: | <2mA standby |
Gain Control Type: | Variable Gain Control |
Ground Loop Isolation Input Circuit: | Yes |
Allowable Battery Voltage | 10.8V – 15.6V |
Power Fuse: | Yes in Power Cable |
Dimensions (WxDxH): | 316.5 x 113 x 45.5mm |
Additional Features: | Nickel plated connectors, LED Indicator, Remote Turn-On, Turn-On/Off Muting Circuit (Soft Mute) |
