Anchor Rocna Galvanised

Anchor Rocna Galvanised

Rocna
$335.00 - $11,708.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Oversize Product

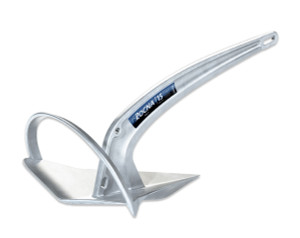

Rocna's galvanised anchor is a multipurpose anchor to suit all ocean floor environments. Features include instant set, self-launching, wind & tide shift resistant.

Available in sizes ranging from 4kg to 150kg, the largest version is suitable for boats up to 28m in length and weighing up to 60 tonnes.

The well-designed features of the weighted chisel tip, roll bar, and large concave blade make this a great anchor for maximising self-launching and minimising movement once set in the ocean floor.

Features:

  • Instant set
  • Self-launching
  • Wind & tide shift-resistant
  • Designed in NZ
  • Galvanised steel
  • Multi-purpose for boat lengths ranging from 4m to 28m
  • No dragging required to set
  • Resistant to wind and tide changes
  • Correct angle set with roll bar and weighted chisel tip
  • High tensile steel shank enables Self-launching
  • Large concave blade area to provide maximum holding power
  • Also available in polished stainless steel (see related products)

Dedicated attachment points for:

  • Buoyed retrieval line
  • Tandem anchor
  • Securing to bow
Sugg. Boat Size (m) Anchor Size Dimensions (mm) - see diagram within images
A B C D E F G Width
4-6 9lb 4kg 547 234 154 133 96 103 75 275
5-8 13lb 6kg 630 270 170 150 102 123 80 315
7-11 22lb 10kg 724 312 204 174 130 133 90 365
8-12 33lb 15kg 830 360 235 205 145 156 100 415
9-14 44lb 20kg 864 373 244 220 162 158 110 435
10-16 55lb 25kg 971 420 275 233 175 184 115 485
11-20 73lb 33kg 1066 485 280 254 180 206 120 532
14-22 88lb 40kg 1142 520 300 278 188 224 130 570
16-26 121lb 55kg 1235 560 323 306 225 226 150 620
18-28 154lb 70kg 1338 607 354 330 240 250 155 670
20-28 243lb 110kg 1490 675 390 352 265 286 180 745
- 331lb 150kg 1725 779 449 416 318 317 203 867
